How is a buzzer made?
Piezo buzzers are constructed by placing electrical contacts on the two faces of a disk of piezoelectric material and then supporting the disk at the edges in an enclosure. When a voltage is applied across the two electrodes, the piezoelectric material mechanically deforms due to the applied voltage.
Structure of the buzzers
As its name suggests, a Piezo-type buzzer's core is the piezoelectric element. The piezoelectric element is made out of piezoelectric ceramic as well as the metal plate, they are held together in or piece by the adhesive.
- alarm.
- bell.
- gong.
- signal.
- warning.
- dinger.
- emergency signal.
Magnetic buzzers are essentially current-driven devices, typically requiring more than 20mA to operate. The applied voltage can be as low as 1.5V or up to about 12V.

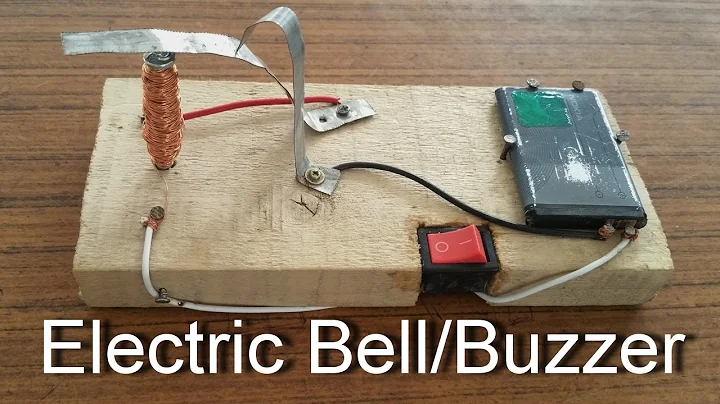

For this process, you need to have a bare copper wire, which you need to bend. This bent copper wire will act as a flipper. It is so-called since it will flip the circuit from the off position to the on position and vice versa. In most advanced buzzer making kits, such copper-based flippers were included.
How the volume of a buzzer/ brightness of a bulb is affected by the number and voltage of cells used. Adding more batteries increases voltage, therefore making bulbs brighter, buzzers louder and motors move faster.
Active and Passive buzzers:
Active buzzers are called active because they can produce sound directly when connected with the battery. Active buzzers can produce a single tone which is tuned to 2khz by most of the manufacturers. On the other hand, Passive buzzers need a triggered wave to produce sound.
Working voltage: the working voltage of the electromagnetic buzzer can be 1.5-24 V, and the working voltage range of the piezoelectric buzzer can be 3v-220v. However, under normal circumstances, the working voltage range of the piezoelectric buzzer is recommended to be above 9V to obtain a larger sound.
To connect a buzzer – connect the red wire to the output ring (either P0, P1 or P2) and the black wire to GND. To connect an LED – connect the longer leg to the output ring (either P0, P1 or P2) and the short leg to GND. To make the buzzer sound or the LED light up we use the same code.
A buzzer is an audio signal device, which may be mechanical, electromechanical, or piezoelectric (piezo for short). Typical uses of buzzers in the industry is as an alarm devices, which makes a buzzing or beeping noise while need buzzing.
Does buzzer need resistor?
According to it, the Piezo buzzer doesn't require a resistor because it's an active device and thus can control current flow in the circuit whereas LEDs are passive and can't.
With a cheap piezo buzzer, you can set alarms or play whole tunes. Whether you're building a game that beeps when you lose a turn, an alarm clock that wakes you up or just a cute display that plays 8-bit music, a low-cost piezo buzzer can be a great part of your Raspberry Pi Pico project.
Also known as a sounder, audio alarm or audio indicator, a buzzer is a basic audio device that generates a sound from an incoming electrical signal. Buzzers come in two primary forms — piezo buzzers and magnetic buzzers.
You can increase the duty cycle (which will increase the average voltage), or you can increase the supply voltage. Do what is easiest for you. The average voltage will determine the loudness: loudness = supply voltage * duty cycle.
The transistor allows the buzzer to be powered from a different voltage to the Arduino. Any NPN transistor that can handle the current drawn by the buzzer can be used. With a PN2222 and 2k2 base resistor, the circuit can be used to operate a buzzer that draws up to about 200mA.
- Cardboard.
- Popsicle sticks.
- Bare iron or copper wire.
- Switch.
- 9V battery and holder.
- Electrical wires, resistors, and soldering gear.
- Mini buzzer.
- Hot glue gun.
The buzzer needs to be connected between the collector and the positive terminal of your battery. If you want to put the buzzer on the low side, you need to use a PNP transistor. The transistor itself doesn't really matter, and any regular transistor will do.
